Edge Waste Screener & Picking Stations

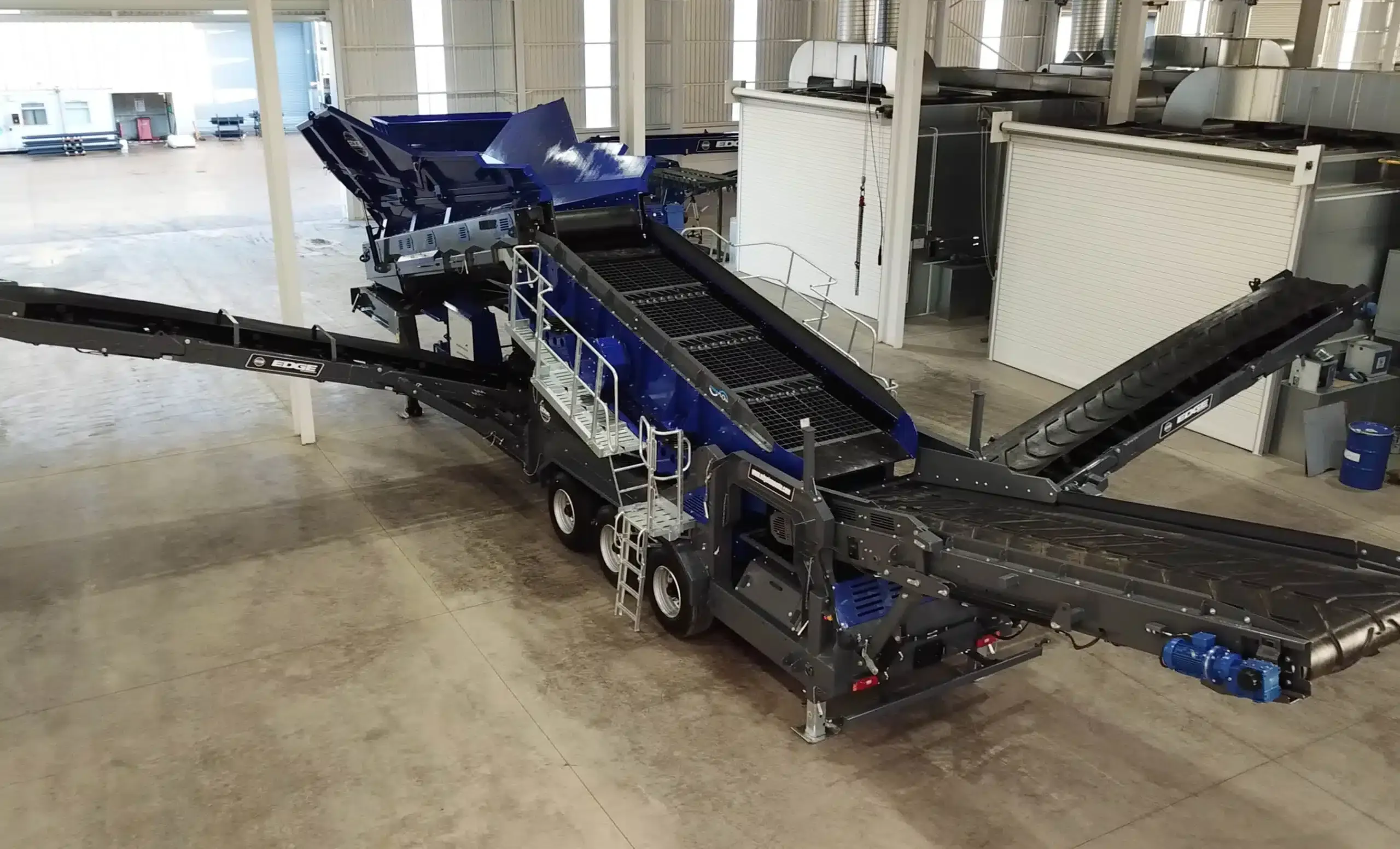

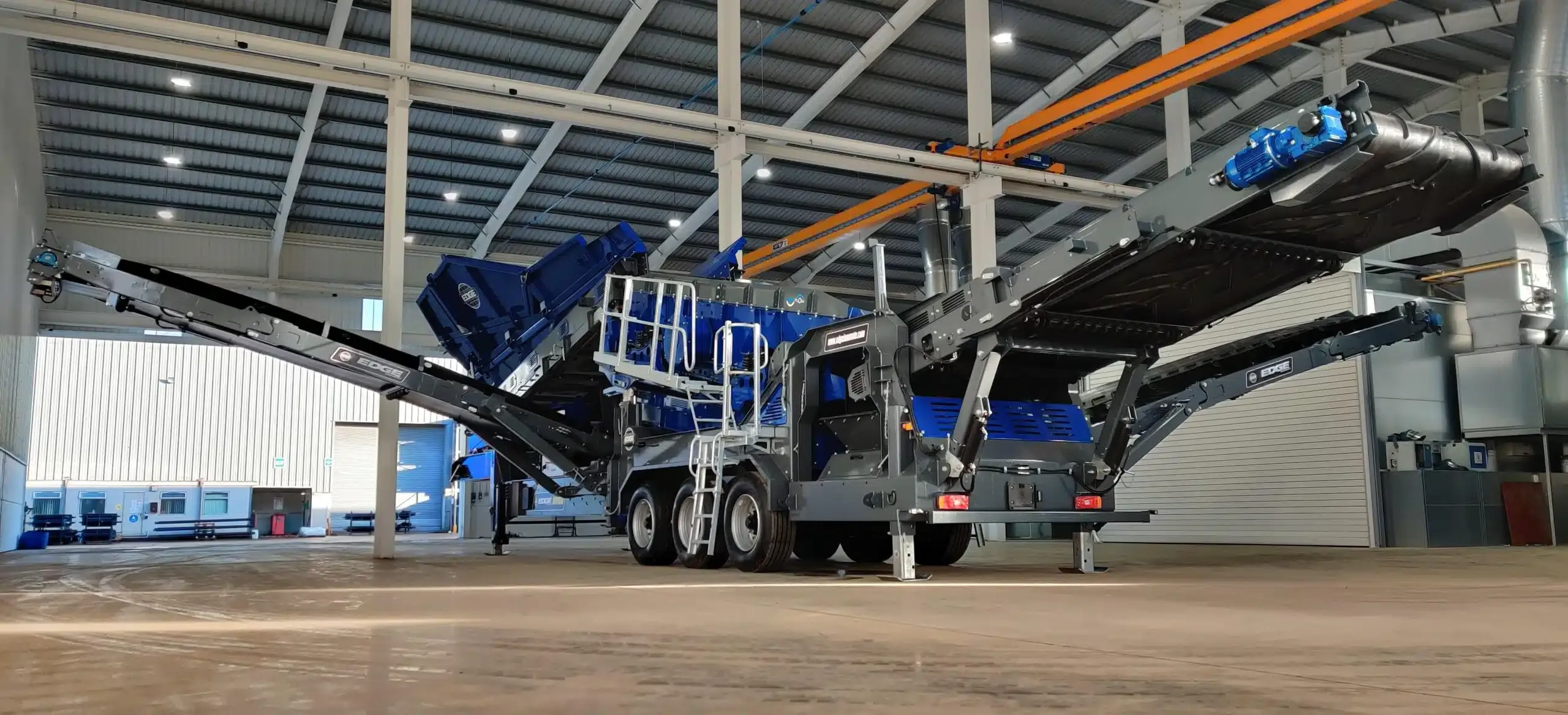

SM186 Edge Waste Screener
The EDGE SM186 wheeled mounted screener is a highly efficient screening solution designed for the most difficult and demanding of applications including recycling, soils, aggregates, compost and demolition waste. With increased throughput, high efficiency and quality end products; the EDGE SM186 mobile screen incorporates a robust 18’X6’ (5.4X1.75m) two-deck screen with interchangeable flip flow and conventional scalper bottom decks. This flexibility combined with numerous screen media options and configurations allows the EDGE SM186 to process a wide
range of materials and tackle screening applications that other conventional screens cannot.

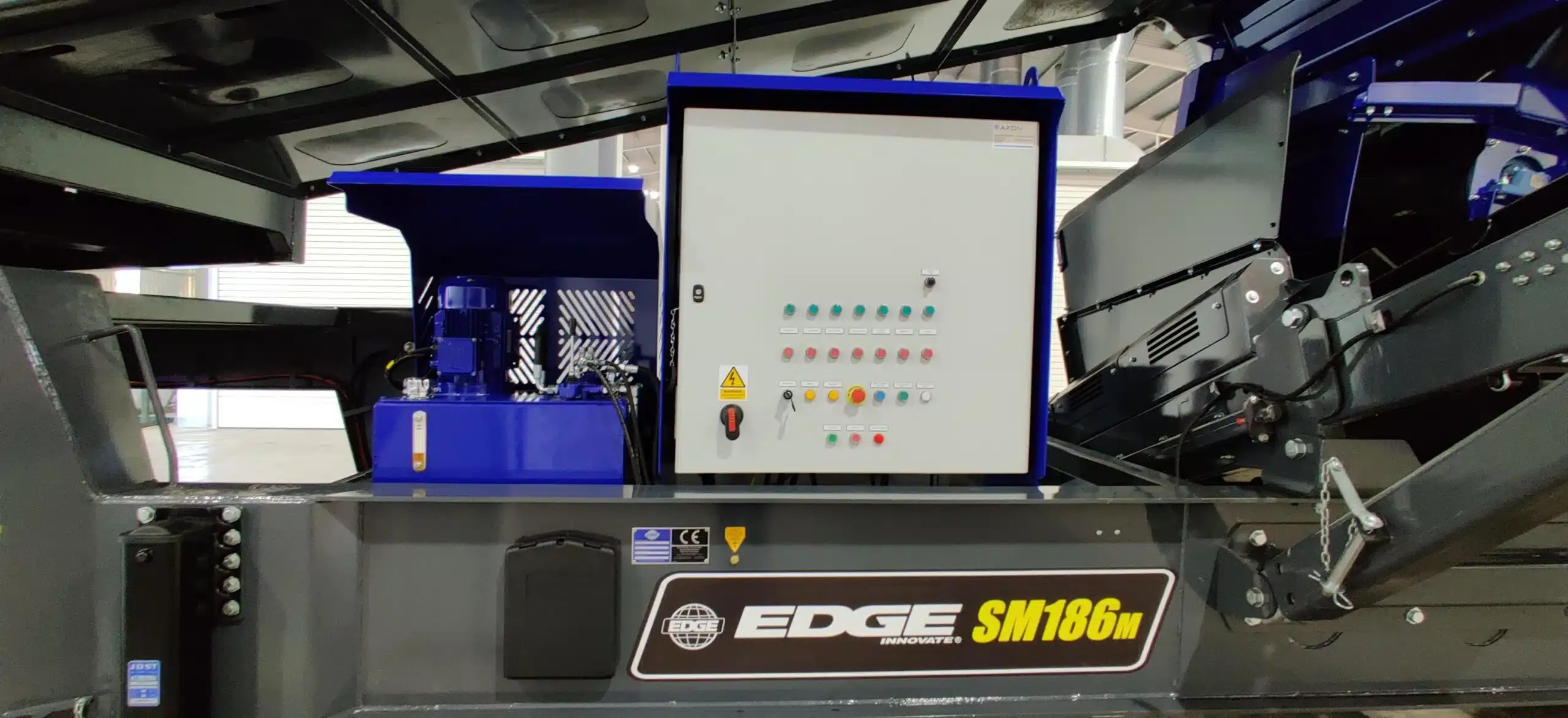

Impressive design features include a low-level feed hopper designed to accept loads from all three sides without the need for construction ramps, a 2 or 3-way splitting configuration, hydraulic folding discharge conveyors to facilitate the quick transition from operation to transport and a fully integrated power unit with large service access. A user-friendly control system with sequential start/stop functionality provides exceptional operational performance and unit safety.
CALL US TO FIND OUT MORE ABOUT OUR PRODUCTS AND SERVICES.
Robust interchangable 18’X6’ (5.4X1.75m) 2 deck screen.
• Choose between 3 different screen box types.
• Intelligent modular top deck system allowing numerous media
types to be installed side by side including 3D screens.
• A low level direct feed hopper facilitates side and rear loading
via wheel loaders without the need to construct ramps.
• Both side conveyors can be repositioned on any side of the
machine to suit site requirements.

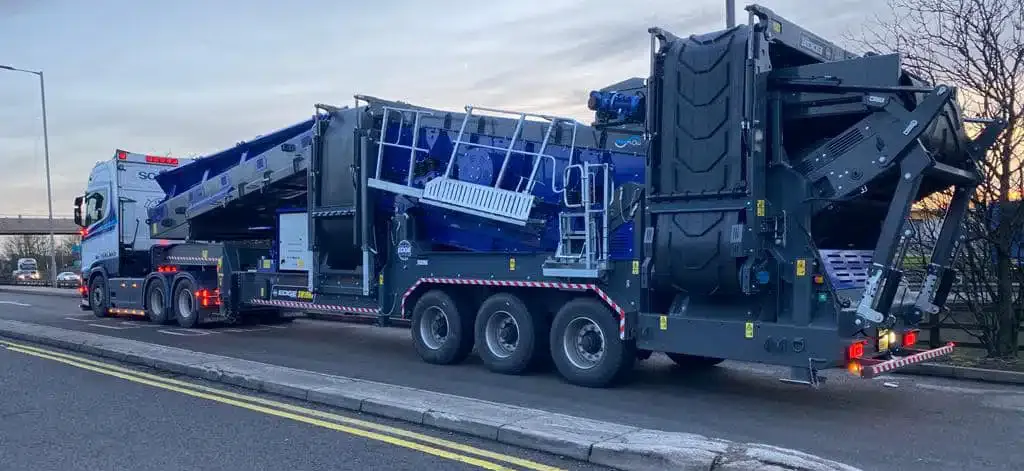

• Fully mobile fifth wheel hook-up with hydraulic folding
discharge conveyors enables quick and easy transport from
site to site.
