Edge Trommel
TRM831 Mobile Trommel Screen
The EDGE TRM831 mobile trommel screen offers high production rates with extensive stockpiling capacities thanks to its end discharge conveyor design and remote 180° radial fines conveyor. The EDGE TRM831 portable trommel is ideal for the high-capacity screening of various applications including topsoil, compost, sand, household waste and construction and demolition waste. With a wide range of different drum types and screening media available, the EDGE TRM831 can be customised to suit the customers exact application requirements.
The EDGE TRM831 mobile trommel incorporates a host of impressive design features such as, a remote 180°radial fines conveyor as standard, an eco-power saving functionality which reduces unnecessary running costs and a user-friendly HMI control panel for the easy adjustment of machine parameters. An intelligent load management systems ensures that the trommel screen is always operating at optimum performance with minimal supervision. A large hopper opening combined with class leading belt widths allow for the quick and smooth flow of material through the trommel.

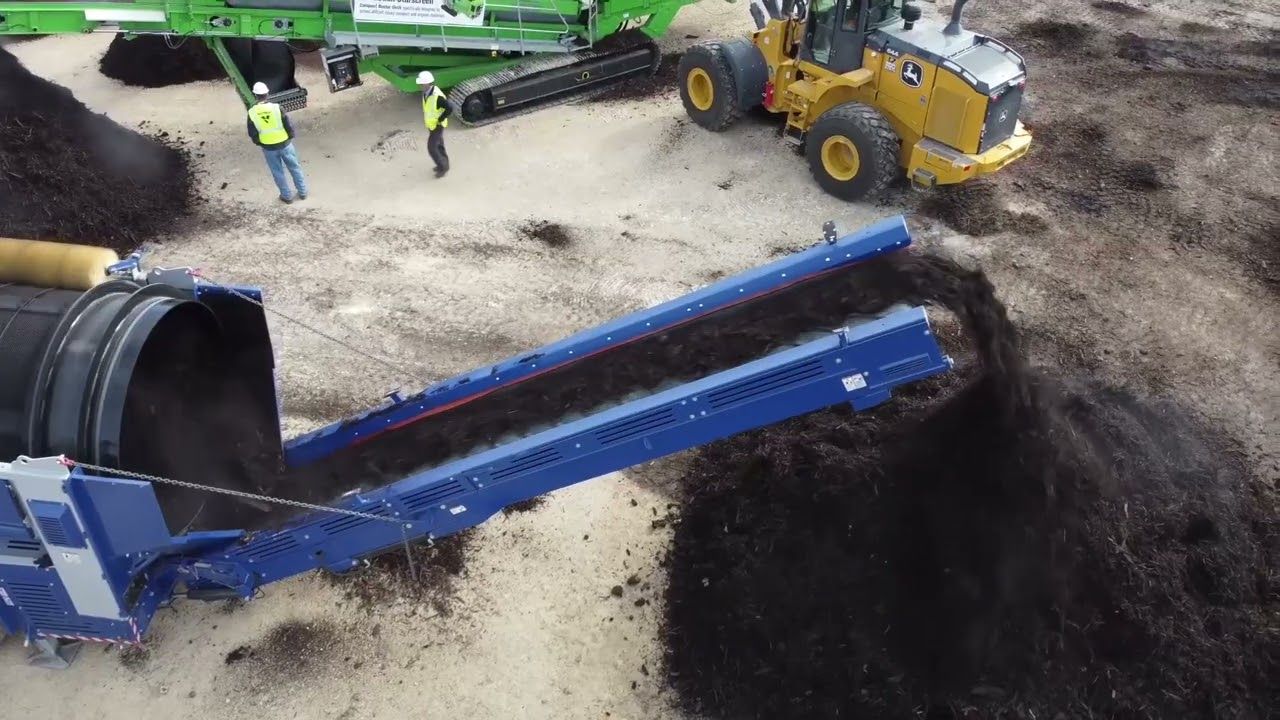

The TRM831 mobile trommel screen discharges fines material via a radial fines conveyor with a discharge height of up to 6m (19’8”). With a 180° radial functionality as standard, the radial fines conveyor facilitates the creation of impressive stockpiles and reduces the double handling of material by up to 75%.
CALL US TO FIND OUT MORE ABOUT OUR PRODUCTS AND SERVICES.
Specifications
- Weight37 TONNES (40.78UST)
- Transport Width3m (9’10’)
- Transport Length20.9m (68’8”)
- Transport Height4.1mm (13’6″)
- Working Width3m (9’10’)
- Working Length31.2m (102’4″)
- Working Height5.9m (19’8″)
